Key Insights for Sourcing Managers
- Reinforced D-ring attachment points must be specified at the brief stage.
- Oxford fabric (lightweight) is preferred for most ceiling-mount applications.
- Allow for product height plus 0.5m safety clearance above head height.
- Venues typically require structural weight certificates for approval.

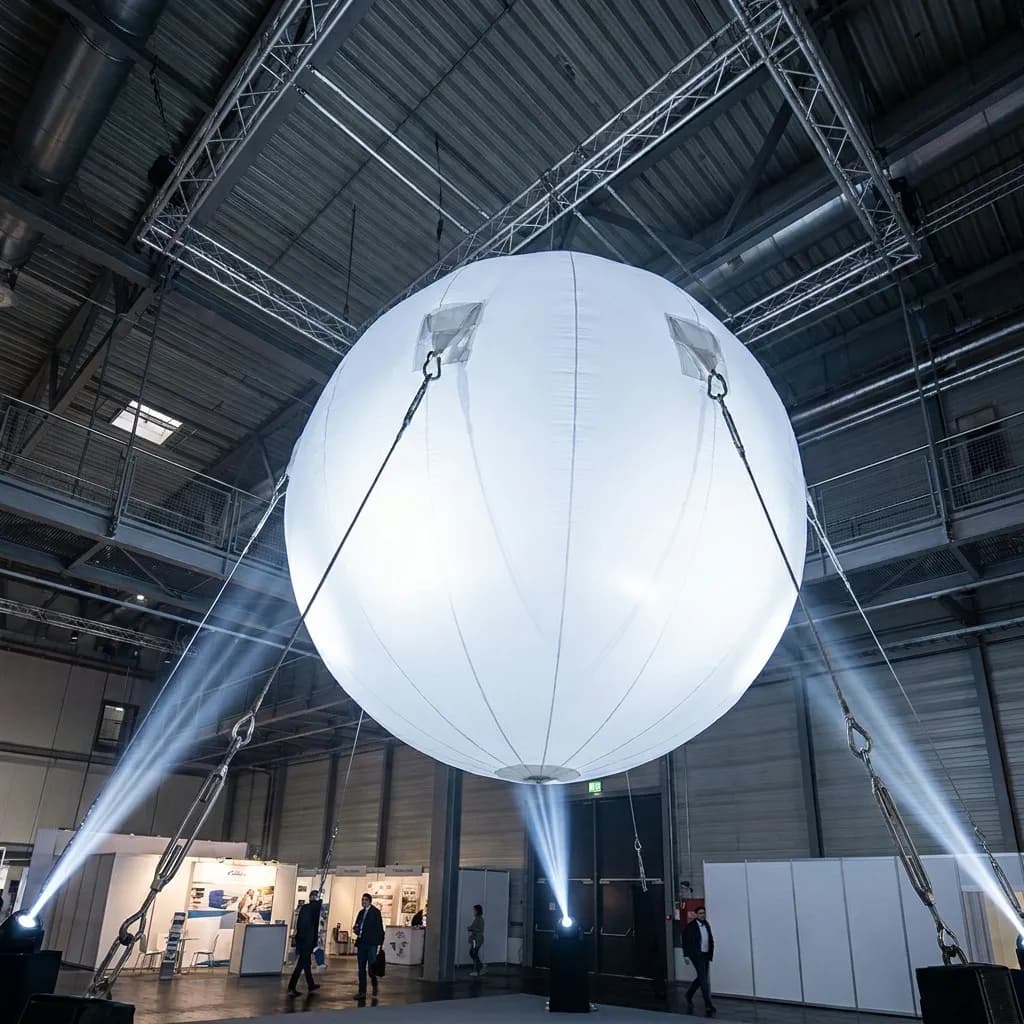

Ceiling-mounted inflatable displays create a dramatically different visual impact from ground-based inflatables — but they require different planning, different anchoring hardware, and often different conversations with your venue.
Rigging Attachment Points: What to Specify
Ceiling suspension begins at the design stage. D-rings or reinforced fabric loops must be engineered into the inflatable body — they cannot be reliably added post-production. When briefing your manufacturer, specify:
| Specification | Details to Provide |
|---|---|
| Number of attachment points | Typically 3–6 points for even load distribution |
| Position on inflatable | Top surface, evenly spaced — confirm via 3D mockup |
| Load rating per point | Minimum 3× the inflatable's weight per point |
Weight Limits & Ceiling Height
Two numbers determine whether your ceiling can accommodate the inflatable: the product weight and the available ceiling height.
Typical Weights
- 1m Oxford letter: 0.8–1.5 kg
- 3m Oxford mascot: 5–12 kg
- 2m PVC replica: 8–15 kg
Height Formula
- Inflatable height + 0.5m clearance
- Rigging hardware allowance (~0.3m)
- Audience head height (1.8m min)
Frequently Asked Questions
Do inflatables have attachment points for ceiling hanging?
Yes. We engineer ceiling suspension attachment points — D-rings or reinforced loops — into any inflatable on request. The position, number, and load rating of these points are specified during the 3D mockup approval stage. If you plan to ceiling-suspend an inflatable, specify this requirement when briefing so the structural design accounts for the loading.
How much does an inflatable weigh?
Weight varies significantly by size and material. A 1-metre Oxford fabric letter weighs approximately 0.8–1.5kg. A 3-metre Oxford fabric mascot weighs 5–12kg. A 2-metre PVC replica bottle weighs 8–15kg. We provide exact weight specifications for every product on the QC documentation before shipping — critical information for your venue's rigging team.
What ceiling height is needed to hang an inflatable?
As a general rule, allow the inflatable's full height plus a minimum 0.5 metre safety clearance below the lowest point at audience head height. A 2-metre inflatable ball, for example, requires ceiling suspension points at approximately 3.5–4 metres to clear 1.8 metres at the lowest point with rigging hardware allowance. For complex shapes, a rigging plan should be prepared.
Do venues require documentation for ceiling-hung inflatables?
Many commercial venues — shopping malls, exhibition centres, sports arenas — require a structural rigging certificate or load assessment before approving ceiling-hung inflatable displays. We provide product weight specifications and attachment point load ratings that can be used by your venue's appointed rigging contractor to prepare the required documentation.
Specify Ceiling Suspension at Order Stage
Tell us your ceiling height and suspension point availability. We engineer the attachment points into your inflatable design and provide weight specifications for your venue's rigging team.
